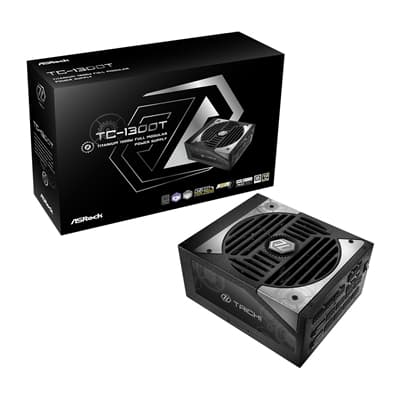

ASRock TC-1300T 1300W ATX, Power Supply Unit, 80 PLUS TITANIUM Certified. 135mm Striped Axial FDB Fan, High Efficiency PSU

• Wattage: 1300W
• Size/Version: ATX 3.1
• Modular: Fully
• SATA Connections: 9
• Certification: Titanium
• Colour: Black

80 PLUS TITANIUM Certified
Cybenetics TITANIUM and LAMBDA A+ Certified
ATX3.1 & PCIe5.1 Ready
Fully Modular Cable Design
Native 12V-2x6 Connector Dual Color Design with TempGuard
100% Highly Reliable Japanese Capacitors
135mm Striped Axial FDB Fan
iCool Intelligent Fan Control Mode
5V BOOST Mode
Remarkable 10-Year Warranty

Powerful Future Be Ready For ATX 3.1 & PCIe 5.1
The ASRock TAICHI series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 235% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.

With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.

The NTC sensor at the VGA connector monitors the temperature and sends signal the PSU to ensure safe operation.

When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.

iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.

The TAICHI Series Power Supply guarantees unmatched power efficiency and peak performance, delivering exceptional reliability for the most demanding systems.

The Taichi series power supply operates at less than 20 dB of noise on average, earning the prestigious Cybenetics Lambda A+ certification. This recognition underscores the Taichi series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.

The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.

The industrial-leading components deliver high efficiency and reliability.

105 C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.

Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 ?Year warranty, guaranteeing long term reliable and peace of mind operation.

TITANIUM

TITANIUM / A++

ATX 3.1

100-240V~, 50-60Hz, 15-8A

108.3A

10

180mm x 150mm x 86mm

135mm Striped Axial FDB Fan

Yes (Switch)

OCP, SCP, OVP, UVP, OTP, OPP

All Japanese

Yes (Switch)

Yes

235%


100,000

24pin & 12+4pin: Sleeved
Others: Individual Braided Pattern

1

2

2

8

3

9
