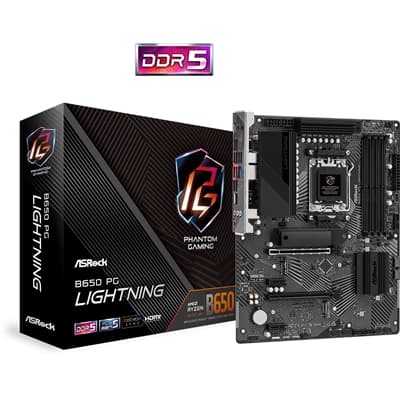

ASRock B650 PG Lightning AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, 1x HDMI Port

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD B650
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: No

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise

Extreme Memory Overclocking - DDR5 EXPO & XMP Support
Derived from the built for stable and reliable designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6400MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO?/ Intel� XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

Due to the unique electrical architecture of DDR5 DIMM, there?s a high risk of damaging the memory module if AC power isn?t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution - PCIe Gen5 x4 for SSD
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you?ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Supports AMD Ryzen 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs, supports up to 6400+(OC)
2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen4x2),
4 SATA3
1 USB 3.2 Gen2x2 Type-C (Rear),
1 USB 3.2 Gen2 Type-C (Front),
9 USB 3.2 Gen1 (7 Rear, 2 Front),
8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN

Superb Productivity
PCIe Gen5 (M.2)
Dual Channel DDR5
Rock-Solid Durability
14+2+1 Power Phase, 60A SPS
Pre-Installed I/O Shield
Ultrafast Connectivity
2.5G LAN
ASRock Lightning Gaming Ports
EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer

Supports AMD Socket AM5 Ryzen 7000 Series Processors

AMD B650

Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules

256Mb AMI UEFI Legal BIOS with GUI support

Integrated AMD RDNA 2 graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Phantom Gaming LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode
2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

1 x USB 3.2 Gen2x2 Type-C (Rear)
1 x USB 3.2 Gen2 Type-C (Front)
9 x USB 3.2 Gen1 (7 Rear, 2 Front)
8 x USB 2.0 (4 Rear, 4 Front)

1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)

2 x Antenna Mounting Points
1 x HDMI Port
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)
7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

Software
ASRock Motherboard Utility (Phantom Gaming Tuning)
ASRock Phantom Gaming LAN Software
ASRock Polychrome SYNC
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

1 x User Manual
2 x SATA Data Cables
3 x Screws for M.2 Sockets

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
8 Layer PCB

Microsoft Windows 10 64-bit / 11 64-bit

FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
