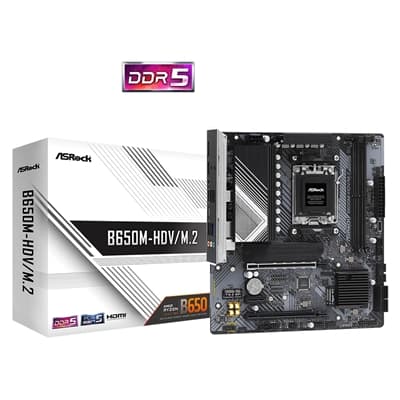

ASRock B650M-HDV/M.2 AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD B650
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 2 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: No

Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
8+2+1 Power Phase, Dr.MOS
2 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
Integrated AMD RDNA 2 Graphics
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2 Front Type-C,
7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer, BIOS Flashback
Pre-Installed I/O Shield

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Due to the unique electrical architecture of DDR5 DIMM, there?s a high risk of damaging the memory module if AC power isn?t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
Extra anchor points
Stronger latch
Ensure signal stability
Make sure heavy graphics cards to be well-installed.

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
Static Noise Suppression
Echo Cancellation
Lateral Sound Cancellation
Voice Stabilizer

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360� on a radar for a full immersion during the game.

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you?ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.

PCIe Gen5 (M.2)
Dual Channel DDR5

8+2+1 Power Phase, 50A Dr.MOS
Pre-Installed I/O Shield

2.5G LAN EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
EZ Troubleshooter

Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

AMD B650

Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

256Mb AMI UEFI Legal BIOS with GUI support

Integrated AMD RDNA graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
Chipset:
1 x PCIe 4.0 x1 Slot (PCIE2)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Supports AMD CrossFire
15� Gold Contact in VGA PCIe Slot (PCIE1)

CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

1 x USB 3.2 Gen2 Type-C (Front)
1 x USB 3.2 Gen1 Type-C (Rear)
6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
8 x USB 2.0 (4 Rear, 4 Front)

1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin)
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2 Header

2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
2 x USB 3.2 Gen1 Type-A Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

1 x User Manual
2 x SATA Data Cables
2 x Screws for M.2 Sockets

Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
2oz Copper PCB

Microsoft Windows 10 64-bit / 11 64-bit

FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
