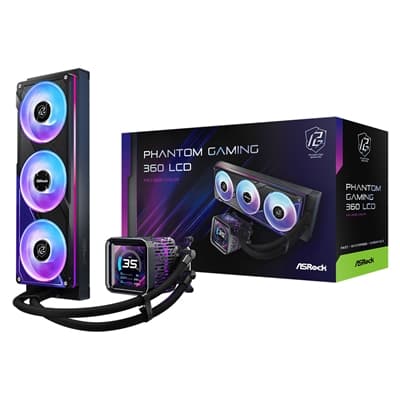

ASRock Phantom Gaming 360 LCD AIO Liquid CPU Cooler, 360mm Radiator, Triple 120mm PWM ARGB Fans, LCD Display, Intel LGA1700/1851 & AMD AM5/AM4 Compatible

• Product Type: Liquid CPU Cooler
• Radiator Colour: Black
• Max Fan Speed: 3100RPM
• Radiator Size: 360mm
• LED Colour: ARGB

The Phantom Gaming AIO liquid cooler embodies the explosive spirit of performance and style. With a 3.4" LCD display, vivid ARGB lighting, and performance-optimized cooling design, it unleashes raw power and dynamic visual energy to elevate every build.

FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It?s all about bringing a new gaming experience to gamers!"

A 3.4" full-coverage LCD brings your system stats and custom visuals to life in vibrant detail.

Combines real-time monitoring with customizable visuals, letting users display system stats, preferred images, or animations ? all through an intuitive interface with multi-language support.

Explore built-in animations or import your own for a fully customized display experience.

Precision-engineered structure and automotive-grade components, powered by a 3-phase, 6-slot, 4-pole motor for stronger flow, extended durability, and peak cooling performance for unwavering CPU stability.

Continuous Magnetic Field-Continuous rotating magnetic field for higher energy conversion efficiency.
Low Torque Ripple - Low torque ripple ensures smooth and stable operation.
Balanced Current Load - Balanced current distribution minimizes copper loss.
Reduced Core Loss - Reduced core loss improves overall operating efficiency.
Lower Thermal Output - Lower thermal output maintains efficiency during prolonged operation.
Simplified Motor Architecture - No starting capacitors or coils required, improving reliability.

The dual-side inlet cooling path design shortens coolant flow distance while ensuring balanced distribution across the high-density micro-fin array. By delivering coolant directly to the CPU hot spot from multiple directions, the design helps keep temperatures more even and improves overall thermal efficiency

Integrated ventilation and air-guide design channel airflow directly to heat-critical zones for maximum cooling efficiency.

The Striped Ring fan design features reinforced blades engineered to optimize airflow across both the VRM module and the radiator, driving high-volume intake to keep power delivery components cool and stable, while generating strong lateral airflow for deep fin penetration and maximum radiator cooling efficiency.

Fluid Dynamic Bearing minimizes friction and vibration for whisper-quiet, stable cooling and long service life.

A 32mm-thick radiator maximizes heat dissipation and cooling efficiency, while 7mm reinforced tubing increases coolant volume for superior thermal performance.

Fan stops completely under low load for absolute silence and extended lifespan.

Streamlined mounting meets seamless ARGB halo for vibrant, uniform illumination that transforms your rig into a true showcase.

Delivers richer illumination across every zone with 16 LEDs in the water block, 9 in the fan hub, and 60 in the halo frame for smooth, vibrant lighting effects.

The unified fan-frame structure allows all fans to operate through a single cable with separate PWM and ARGB connectors, reducing cable bulk and simplifying installation.

Simply connect the 3-pin ARGB header to an ASRock motherboard to unlock Polychrome SYNC support, experience perfectly synchronized, full-system RGB illumination with seamless control.

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. ASRock AIO Liquid Coolers have passed comprehensive SignalRGB compatibility testing, ensuring reliable control of the LCD display and lighting effects through the SignalRGB software.

High thermal conductivity enables efficient heat transfer, enhancing system stability and extending CPU lifespan.

90-APGA36-BAAGA5

AMD: AM5, AM4
Intel: LGA1851, 1700

Dimension:(L)100.4 x (W)86 x (H)107.6 mm
Material (Cold Plate):Copper
LEDs :ARGB

Dimension:(L)397 x (W)120 x (H)32 mm
Material:Aluminum

Speed:1200 - 3100 � 10% RPM
Current/ Voltage:0.38A/ 12V
Connector:PWM (4-Pin)

Dimension:(L)70 x (W)70 x (H)25 mm
Speed:(Max.) 3000 � 10% RPM
Connector:PWM (4-Pin)
Current/ Voltage:0.12A/ 12V

Dimension:(L)362 x (W)123 x (H)28 mm
Speed:0 - 2400 � 10% RPM
Air Flow:(Max.) 61.28 CFM
Air Pressure:(Max.) 3.11 mmH20
Noise:(Max.) 31.4 dB(A)
Connector:PWM (4-Pin)
Current/ Voltage:0.84A/ 12V
Bearing:Fluid Dynamic Bearing
LEDs :ARGB Gen1

Type:IPS LCD
Size:3.4"
Resolution:480 x 480
Display Colors:24-bit
Brightness:250 cd/m�
Refresh Rate:60 Hz
Frames Per Second (FPS):60 FPS
Connector:USB Type-C to Motherboard 9-Pin

Material:IIR + EPDM
Length:450mm

AIO Cooler Module:6 years
Display Module:2 years
