- Form Factor: Micro Tower
- Motherboard Support: Micro ATX
- PSU Included: None
- Case Colour: Black
- LED Colour: Addressable RGB
- USB 3.0: 2
- Side Panel: Tempered Glass

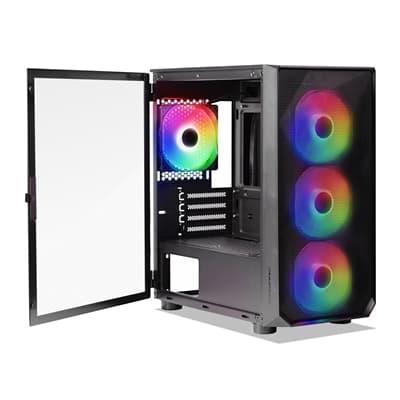

Presenting the Tecware Forge M Omni (TWCA-FORGEM-BKOL) ? a sleek and secure micro-ATX chassis ideal for gamers, builders, and professionals alike. It brings together a high-airflow mesh design, tempered glass showcase, and key-lockable side panel for both aesthetics and peace of mind. Pre-installed fans ensure optimal cooling straight out of the box, with additional expansion support for future upgrades.
Model:
TWCA-FORGEM-BKOL (Forge M Omni, key-lockable)
Form Factor:
MicroATX & Mini-ITX compatible
Weight:
Around 4.9 kg
Construction Materials:
Polyhedral mesh front for airflow, tempered glass side panel (hinged and key lockable), top magnetic filter, bottom PSU filter, and 22 mm cable management space
TWCA-FORGEM-BKOL (Forge M Omni, key-lockable)
Form Factor:
MicroATX & Mini-ITX compatible
Weight:
Around 4.9 kg
Construction Materials:
Polyhedral mesh front for airflow, tempered glass side panel (hinged and key lockable), top magnetic filter, bottom PSU filter, and 22 mm cable management space
Included fans:
4 x 120 mm black fans (3 at the front intake, 1 at the rear exhaust)
Fan capacity:
Supports up to 6 fans total (front, top, rear)
Airflow design:
Full mesh front and multiple vents ensure high air intake and efficient thermal performance
4 x 120 mm black fans (3 at the front intake, 1 at the rear exhaust)
Fan capacity:
Supports up to 6 fans total (front, top, rear)
Airflow design:
Full mesh front and multiple vents ensure high air intake and efficient thermal performance
Motherboard support:
Micro ATX and Mini ITX
GPU clearance:
Up to approximately 315 mm in length
CPU cooler clearance:
Up to approximately 160 mm
PSU compatibility:
Supports PSUs up to ~180 mm length (with HDD cage)
Micro ATX and Mini ITX
GPU clearance:
Up to approximately 315 mm in length
CPU cooler clearance:
Up to approximately 160 mm
PSU compatibility:
Supports PSUs up to ~180 mm length (with HDD cage)
Drive bay configuration:
1 x 3.5 internal
1 x 3.5/2.5 removable cage
2 x 2.5 (mounted)
Expansion slots:
7 x PCIe slots
1 x 3.5 internal
1 x 3.5/2.5 removable cage
2 x 2.5 (mounted)
Expansion slots:
7 x PCIe slots
Ports:
2 x USB 3.0 SuperSpeed ports
HD Audio (headphone/microphone combo)
2 x USB 3.0 SuperSpeed ports
HD Audio (headphone/microphone combo)
Radiator support:
Front: 120 mm / 240 mm
Rear: 120 mm
Top: 120 mm / 240 mm (if fans not installed)
Front: 120 mm / 240 mm
Rear: 120 mm
Top: 120 mm / 240 mm (if fans not installed)
Key-lockable tempered glass side panel:
Enhances physical security while granting easy access via hinge mechanism
Maintenance features:
Magnetic top dust filter and bottom PSU filter for easy cleaning
Cable management:
22 mm routing space for clean internal layout
Enhances physical security while granting easy access via hinge mechanism
Maintenance features:
Magnetic top dust filter and bottom PSU filter for easy cleaning
Cable management:
22 mm routing space for clean internal layout
1 x 3.5
1 x 3.5/2.5
2 x 2.5
1 x 3.5/2.5
2 x 2.5
4 x 120 mm (3 front, 1 rear)
Up to 6 fans
Front: 120/240 mm; Top: 120/240 mm; Rear: 120 mm
2 x USB 3.0, HD Audio
Hinged tempered glass with key lock
Magnetic top + bottom PSU filters
22 mm space
~379 x 205 x 429 mm
