- Form Factor: Mini Tower
- Motherboard Support: ATX
- PSU Included: None
- Case Colour: Timber
- LED Colour: None
- USB 3.0: 2
- Side Panel: Tempered Glass

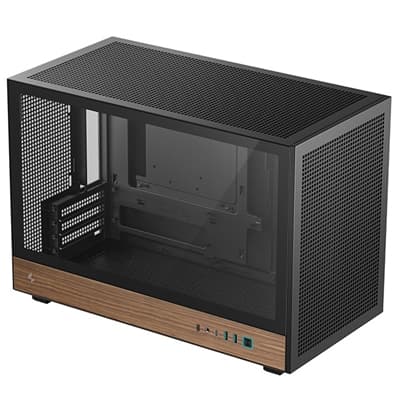

The CH260 series is an expanded version of the classic DeepCool ITX case CH160, capable of containing up to M-ATX motherboard and inheriting its high airflow legacy thanks to the full steel mesh panel, now available in a wood-grain option.
The Micro Form Factor CH260 WOOD comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.
The wood-grain I/O panel adds a natural elegance to the CH260 WOOD, giving your build a furniture-like presence that fits beautifully into modern living spaces.
The CH260 WOOD provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.
The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.
438mm*225mm*312.5mm(LxWxH)
5.3Kg
ABS+SPCC+Tempered Glass
Mini-ITX / Micro-ATX
Micro-ATX(Rear Connector)
Micro-ATX(Rear Connector)
USB3.0x2
Gen2 Type-C x1
Audio/Micx1
Gen2 Type-C x1
Audio/Micx1
1
1
4
Front:2x120mm
Top:3x120mm/2x140mm
Rear: 1x120mm
Top:3x120mm/2x140mm
Rear: 1x120mm
Front: NA
Top:120/140/240/280/360mm
Bottom: NA
Rear:120mm
Top:120/140/240/280/360mm
Bottom: NA
Rear:120mm
174mm
388/413mm(No Front fans)
ATX PS2(maximum length: 150mm)
6933412765653
R-CH260-BKNWM0-G-1
None
