- Form Factor: Micro Tower
- Motherboard Support: Mini-ITX
- PSU Included: None
- Case Colour: Black
- LED Colour: None
- USB 3.0: 2
- Side Panel: Solid

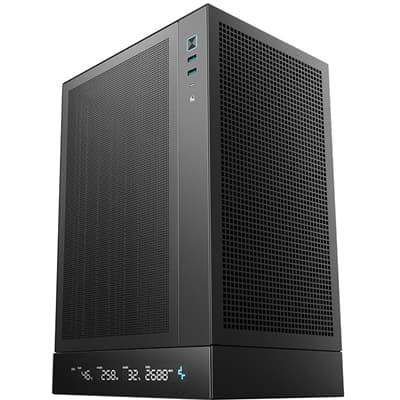

The CH170 DIGITAL is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for a number of different cooling and PSU options.
The Tiny Tower of Power
Mesh panels surround the CH170 DIGITAL from every side and create a high-airflow, small-form-factor case like no other.
The CH170 DIGITAL has a digital base that displays four vital points of data, focusing on CPU, GPU, or PSU information at any given point in time. It can alternate between these modes at a regular interval.
Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL can support giant air coolers up to 172mm in height!
If liquid cooling is preferred, that is also an option with the CH170 DIGITAL. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.
Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable?no added GPU latency concerns!
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL can support any of them up to 140mm.
Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.
ABS+SPCC
Mini-ITX
USB3.0 x 2
Audio x 1
Gen2 TypeC x 1
Audio x 1
Gen2 TypeC x 1
1 x (2.5 SSD / 3.5 HDD / Front 120 FAN Choose one of the three)
1 x (2.5 SSD / 3.5 HDD / Front 120 FAN Choose one of the three)
3
None
1 x 120 mm
2 x 120 mm
1 x 120 mm
2 x 120 mm
240 mm
172 mm
SFX/SFX-L: 305mm / ATX: 230mm
138 mm
65mm (3 Slots)
ATX PS2(maximum length: 140mm)/ SFX / SFX-L
380 x 200 x 250 mm (LxWxH)
3.4KG
