- Form Factor: Mid Tower
- Motherboard Support: E-ATX
- PSU Included: None
- Case Colour: Black
- LED Colour: Addressable RGB
- USB 3.0: 2
- Side Panel: Tempered Glass
Impressive lighting, exceptional airflow

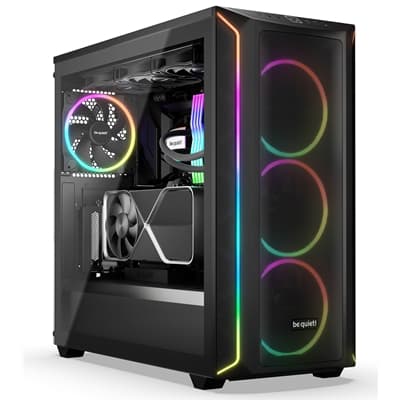

Shadow Base 800 FX Black is an airflow-optimized midi-tower that offers impressive ARGB illumination and provides enough space for extensive components such as huge graphics cards and E-ATX motherboards.
ARGB lighting with ARGB controller for maximum illumination options
Multiple colors and modes for an individual look
4 Light Wings 140mm PWM fans for high airflow and quiet operation
Exceptionally high airflow thanks to an open mesh design
Spacious design offers room for largest components
PWM and ARGB hub included
Simple and tool-less HDD and SSD installation
Tinted and tempered glass side window allows a superb view
Lots of illumination possibilities
Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front of the case offer multiple colors and modes to individualize the look. You can optionally synchronize lighting with your motherboard or an ARGB controller.
Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front of the case offer multiple colors and modes to individualize the look. You can optionally synchronize lighting with your motherboard or an ARGB controller.
Lots of illumination possibilities
Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front of the case offer multiple colors and modes to individualize the look. You can optionally synchronize lighting with your motherboard or an ARGB controller.
Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front of the case offer multiple colors and modes to individualize the look. You can optionally synchronize lighting with your motherboard or an ARGB controller.
Airflow all the way
For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 FX Black with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.
For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 FX Black with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.
Generous dimensions for radiators up to 420mm
With its remarkably large dimensions, Shadow Base 800 FX Black sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.
With its remarkably large dimensions, Shadow Base 800 FX Black sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.
Professional Cable Management
No matter the size or number of components built into the Shadow Base 800 FX Black, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.
No matter the size or number of components built into the Shadow Base 800 FX Black, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.
State-of-the-art connectivity for your system
A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors and an ARGB controller button complement the I/O panel and make it a multi-purpose interface for any type of hardware.
A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors and an ARGB controller button complement the I/O panel and make it a multi-purpose interface for any type of hardware.
A perfect view inside your PC
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
Model: Shadow Base 800 FX Black
Color option: Black
Motherboard compatibility: E-ATX / ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm) 550 x 247 x 503
Case size incl. stands (L x W x H), (mm) 550 x 247 x 522
Volume (l): 62.74
PSU form factor: ATX PS/2
Weight (kg): 12.3
Expansion slots: 7
Color option: Black
Motherboard compatibility: E-ATX / ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm) 550 x 247 x 503
Case size incl. stands (L x W x H), (mm) 550 x 247 x 522
Volume (l): 62.74
PSU form factor: ATX PS/2
Weight (kg): 12.3
Expansion slots: 7
Fan at top: No
Fan at front: 3 x Light Wings 140mm PWM
Fan at side: No
Fan at rear: 1 x Light Wings 140mm PWM
Fan at bottom: No
Dimensions (L x W x H), (mm) Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm): 1500
Airflow at 100% PWM / 12V (CFM / m3/h); 56 / 95.14
Air Pressure at 100% PWM / 12V (mm H2O): 1.49
Noise level at 100% PWM / 12V (dB(A)): 23.3
Voltage range (V DC): 5 - 13.2
Input power (W): 4.56
Input current (A): 0.38
Connector: 4-pin PWM
Lifespan (h / 25�C): 60,000
Fan controller: No
Fan at front: 3 x Light Wings 140mm PWM
Fan at side: No
Fan at rear: 1 x Light Wings 140mm PWM
Fan at bottom: No
Dimensions (L x W x H), (mm) Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm): 1500
Airflow at 100% PWM / 12V (CFM / m3/h); 56 / 95.14
Air Pressure at 100% PWM / 12V (mm H2O): 1.49
Noise level at 100% PWM / 12V (dB(A)): 23.3
Voltage range (V DC): 5 - 13.2
Input power (W): 4.56
Input current (A): 0.38
Connector: 4-pin PWM
Lifespan (h / 25�C): 60,000
Fan controller: No
Maximum fans: 8
Top (mm): 3 x 140 / 3 x 120
Front (mm): 3 x 140 / 3 x 120
Side (mm); No
Rear (mm): 1 x 140 / 1 x 120
Bottom (mm): 1 x 140 / 1 x 120
PSU shroud: No
Top (mm): 3 x 140 / 3 x 120
Front (mm): 3 x 140 / 3 x 120
Side (mm); No
Rear (mm): 1 x 140 / 1 x 120
Bottom (mm): 1 x 140 / 1 x 120
PSU shroud: No
Top (mm): 120 / 140 / 240 / 280 / 360 / 420
Front (mm); 120 / 140 / 240 / 280 / 360 / 420
Side (mm) No
Rear (mm): 120
Bottom (mm): No
Front (mm); 120 / 140 / 240 / 280 / 360 / 420
Side (mm) No
Rear (mm): 120
Bottom (mm): No
Maximum dimensions excl. bottom fan (mm): 305
Maximum dimensions incl. bottom fan (mm): 260
Maximum dimensions incl. bottom fan (mm): 260
HDD cage (in height of graphics card) installed (mm): 430
HDD cage (in height of graphics card) removed (mm): 430
Maximum PCIe slots with vertical graphics card (pcs.): 7
HDD cage (in height of graphics card) removed (mm): 430
Maximum PCIe slots with vertical graphics card (pcs.): 7
5.25 bays (pcs.): No
3.5 slots (scope of delivery): 1
3.5 slots (max.): 3
2.5 slots (scope of delivery): 3
2.5 slots (max.): 7
3.5 slots (scope of delivery): 1
3.5 slots (max.): 3
2.5 slots (scope of delivery): 3
2.5 slots (max.): 7
Max.construction height of CPU cooler unit (mm): 180
Airflow channel: Front / Top / Rear / Bottom
Airflow channel: Front / Top / Rear / Bottom
LED illumination: Yes
LEDs (pcs.): 40
LED type: ARGB - 5V
LEDs synchronizable with controller/motherboard: Yes
LEDs (pcs.): 40
LED type: ARGB - 5V
LEDs synchronizable with controller/motherboard: Yes
USB 3.2 Gen. 2 Type C: 1
USB 3.2 Type A: 2
USB 2.0: No
HD Audio I/O: Mic + Audio
Qi charger / Quick Charging Option: No
USB 3.2 Type A: 2
USB 2.0: No
HD Audio I/O: Mic + Audio
Qi charger / Quick Charging Option: No
Top: No
Front: 1
Side: No
Bottom: 1
Front: 1
Side: No
Bottom: 1
Top cover: ABS
Front panel: ABS
Side panel: Steel
Side panel window: Tempered glass
Stands: ABS
Front panel: ABS
Side panel: Steel
Side panel window: Tempered glass
Stands: ABS
Approvals: CE, UKCA
